LM-JS-700-4型自動、半自動膠水機，是根據用戶需求，結合本廠多年來對包裝機械的經驗而設計的輸送型紙張上面上膠水設備，該機結構合理，性能穩定，操作方便，容易換單，勞動強度低，使用熱熔膠粉，從而避免傳統白乳膠縮水變形和發霉問題，適用大、中、小型包裝行業流水線作業的理想機械。

可調式上膠滾筒，使膠水均勻涂布在紙張表面上。

輸送吸風裝置，使紙張輸送平穩，不歪斜。

循環式膠水槽，附間接加溫及溫控系統可確保膠水粘度。

設定時間加溫、使生產效益提高，循環式清潔系統，2分鐘內機器清洗完成，極為方便。

變頻調速，可根據生產工人熟練程度控制速度。

主要技術參數：

飛達送紙(最大)900×600mm　

飛達送紙(最小)100×50mm　

紙張厚度80-200gsm

生產速度0-40pcs/min　

機械尺寸L6050×W1650×H950mm　

機械重量1800kg　

電機功率3hp/380v　

電熱3kw

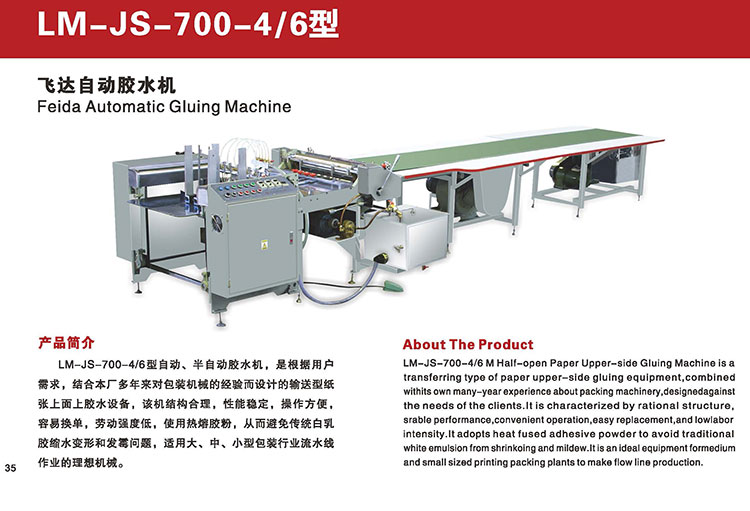

The LM-JS-700-4 automatic and semi-automatic glue machine is a conveyor type paper gluing equipment designed based on user needs and our years of experience in packaging machinery. The machine has a reasonable structure, stable performance, easy operation, easy to change orders, low labor intensity, and uses hot melt glue powder to avoid traditional white latex shrinkage deformation and mold problems. It is an ideal machine for assembly line operations in large, medium, and small packaging industries.

Adjustable glue roller to evenly apply glue on the surface of the paper.

The conveying suction device ensures smooth and non skewed paper conveying.

A circulating glue water tank with an indirect heating and temperature control system can ensure the viscosity of the glue.

Set the time for heating, improve production efficiency, and adopt a circulating cleaning system. The machine cleaning is completed within 2 minutes, which is extremely convenient.

Variable frequency speed regulation, which can control the speed according to the proficiency of production workers.

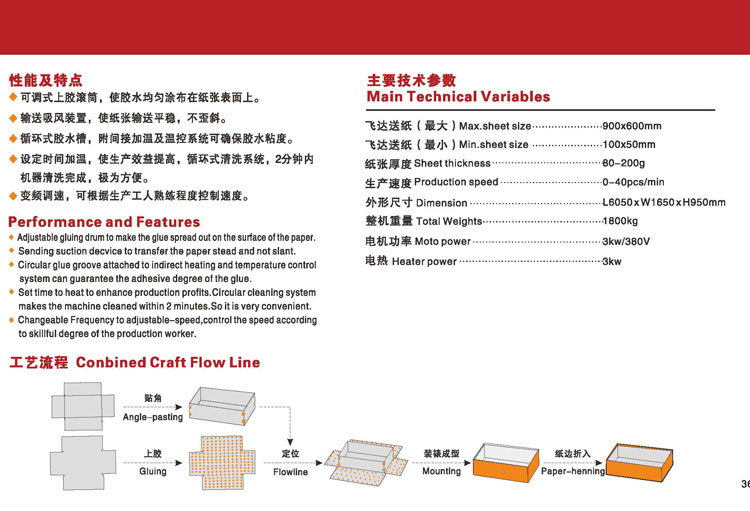

Main technical parameters:

Feida paper feeding (maximum) 900 × 600mm

Feida paper feeding (minimum) 100 × 50mm

Paper thickness 80-200gsm

Production speed 0-40pcs/min

Mechanical dimension L6050 × W1650 × H950mm

Mechanical weight 1800kg

Motor power 3hp/380v

Electric heating 3kw
