LM-TG-40 paper box corner pasting machine (single corner) is a decorative box corner pasting and forming equipment designed in combination with the characteristics of the domestic industry. It has a small footprint, convenient operation, reasonable structure, fast speed, and is a specialized machinery suitable for corner pasting of paper box linings in large, medium, and small printing and packaging factories.

1. Electric single arm compression control device.

2. Digital temperature control.

3. The vertical depth of the corner can be adjusted freely, suitable for various paper boxes.

4. Electronic digital display counting.

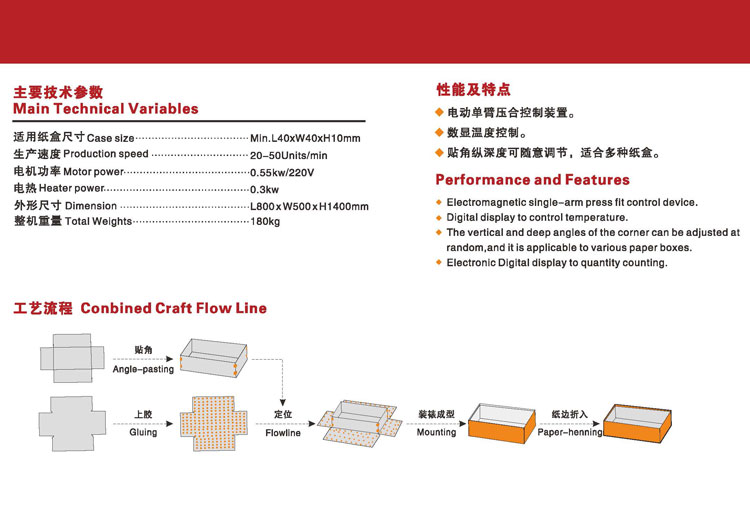

Main technical parameters:

Applicable paper width Min.L40 × W40 × H10mm

Production speed 20-50 Units/Min

Horsepower 1/2HP 220V

Electric heating 240KW

Machine size L800 × W500 × H1400mm

Mechanical weight 180kg

LM-TG-40型紙盒貼角機（單角），采用國外先進技術，結合國內行業特點而設計的飾盒貼角成型設備，具有占地面積小，操作方便，結構合理，速度快，適應大、中、小型印刷包裝廠紙盒內襯貼角的專用機械。

1、電動單臂壓合控制裝置。

2、數顯溫度控制。

3、貼角縱深度可隨意調節，適合多種紙盒。

4、電子數顯計數。

主要技術參數:

適用紙張寬度 Min.L40×W40×H10mm　

生產速度 20-50Units/Min　

馬力 1/2HP 220V　

電熱 240KW　

機器尺寸 L800×W500×H1400mm　

機械重量 180kg
