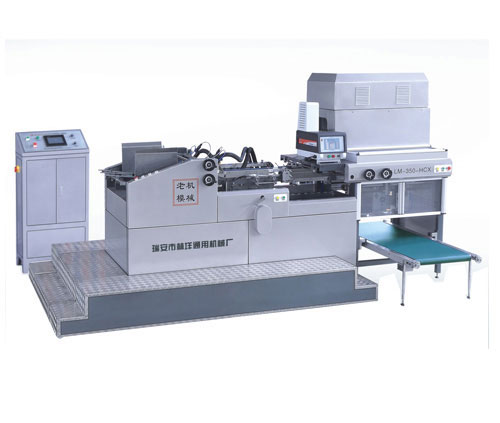

LM-550-HCX型 全自動天地蓋糊合機(鞋盒機)

Full automatic cover and paste machine (shoe box machine)

LM-550-HCX型 全自動天地蓋糊合機(鞋盒機)是我廠研制的自動化設備,該機

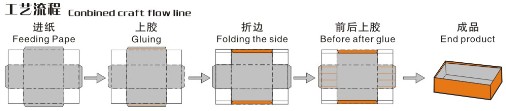

采用PLC編程控制器、觸摸屏人機界面、光電跟蹤系統、伺服控制系統及自動涂膠系統，實現紙板的輸送、涂膠、折邊、成型及整理紙盒的各部分工藝，全過程自動化，生產效率與傳統的手工提高數十倍以上，是各紙盒生產商更新?lián)Q代的首選設備。

The LM-550-HCCX fully automatic heaven and earth lid pasting machine (shoe box machine) is an automated equipment developed by our factory

By using PLC programming controller, touch screen human-machine interface, photoelectric tracking system, servo control system, and automatic gluing system, various processes of cardboard conveying, gluing, folding, forming, and organizing paper boxes are achieved. The entire process is automated, and the production efficiency is improved by tens of times compared to traditional manual methods. It is the preferred equipment for various paper box manufacturers to update and upgrade.

技術參數：

A紙板最小尺寸：220mm

A紙板最大尺寸：650mm

B紙板最小尺寸：350mm

B紙板最大尺寸：700mm

電熱功率：5.5kw

電機功率：4.6kw

生產速度：40PCS/win

紙盒W最小尺寸：120mm

紙盒W最大尺寸：300mm

紙盒L最小尺寸：200mm

紙盒L最大尺寸：350mm

紙盒H最小尺寸：30mm

紙盒H最大尺寸：150mm

外形尺寸：L4600×W3000×H2400mm

整機重量：2500kg

特點：

1、吸風底抽式自動卷紙，輸紙準確、平穩。

2、光纖定位折邊涂膠，除低涂膠誤差。

3、伺服推送紙板前后涂膠，減少光電眼照射紙板之誤差，涂膠更準確。

4、前后涂膠采用雙槍八字形涂膠，紙盒貼合平整牢固。

5、成型采用變頻聯動調速，各部分無需單獨調整，節省調機時間。

6、成型采用全封閉式且各部分裝有安全保護系統，操縱安全無憂。

7、采用PLC微電腦編程控制器、觸摸屏人機界面、光電跟蹤系統、實現紙盒的一次性成型全過程自動化生產。

8、自動故障診斷功能，出現故障一目了然，排除更方便快捷。

Features:

1. The suction bottom suction automatic paper roll ensures accurate and stable paper feeding.

2. Fiber optic positioning fold edge coating, eliminating low coating errors.

3. Servo push of cardboard before and after gluing reduces the error of photoelectric eye irradiation on the cardboard, resulting in more accurate gluing.

4. The front and back glue are applied in a double gun eight shaped pattern, and the paper box is firmly and smoothly bonded.

5. The molding adopts variable frequency linkage speed regulation, and each part does not need to be adjusted separately, saving adjustment time.

6. The molding adopts a fully enclosed design and each part is equipped with a safety protection system, ensuring worry free operation.

7. Adopting PLC microcomputer programming controller, touch screen human-machine interface, photoelectric tracking system, to achieve the automation of the entire process of one-time molding of paper boxes.

8. The automatic fault diagnosis function makes it clear at a glance when faults occur, making troubleshooting more convenient and efficient.
